Dimensions
- Main Body286×297×42 mm

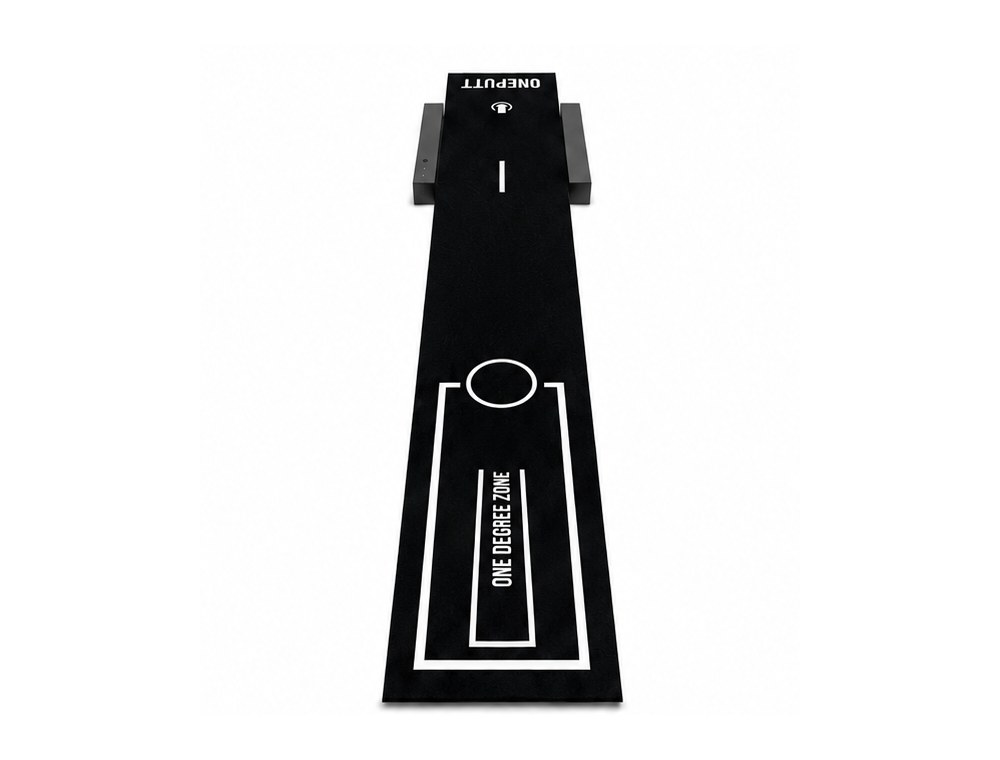

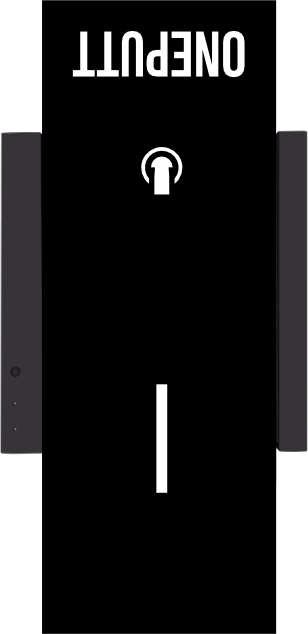

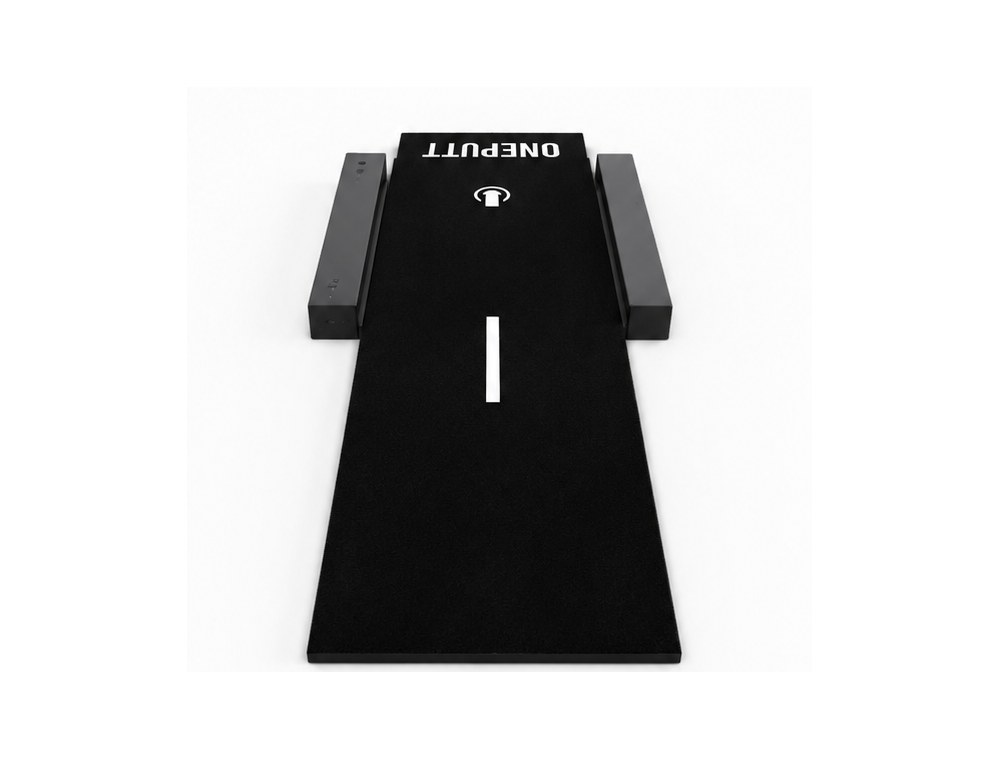

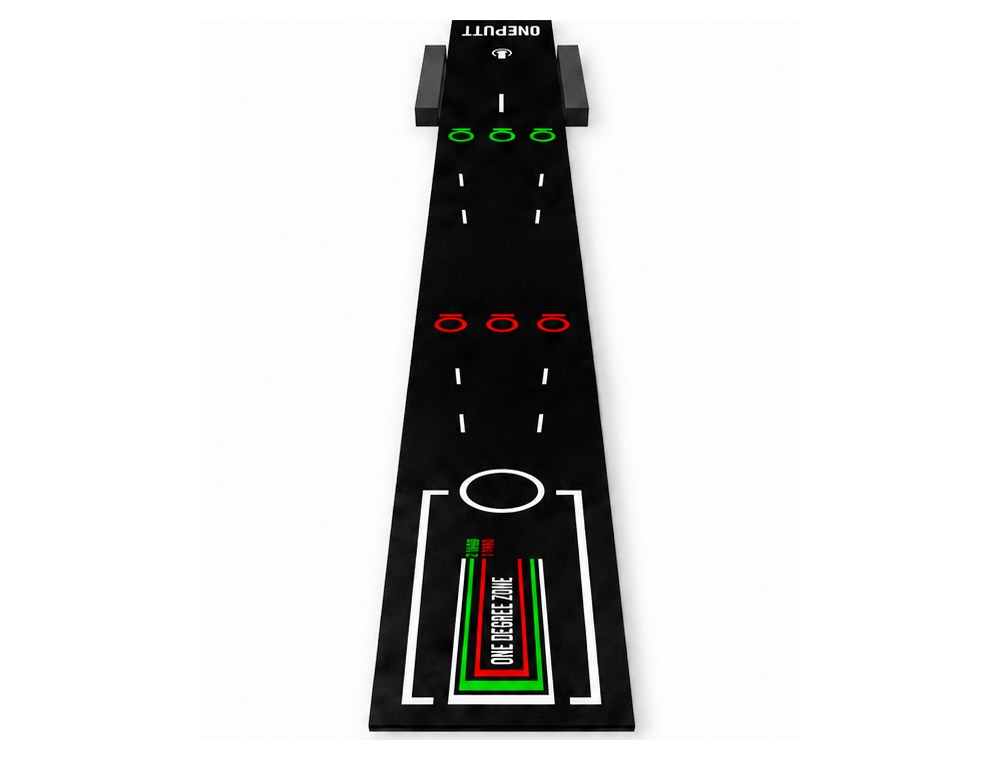

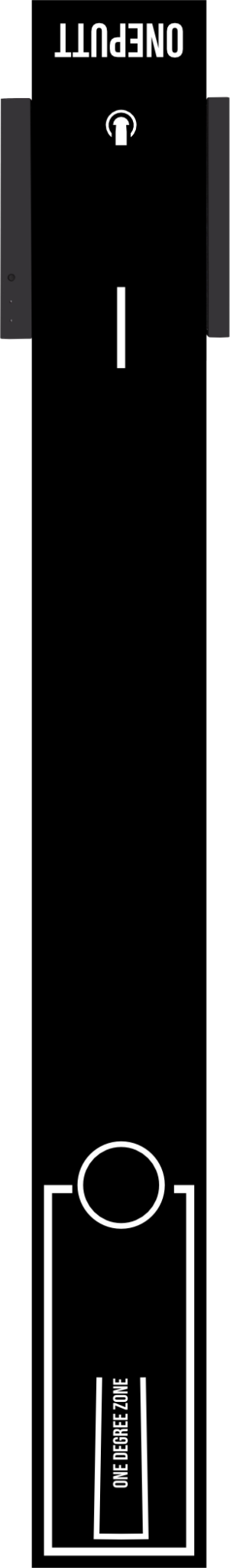

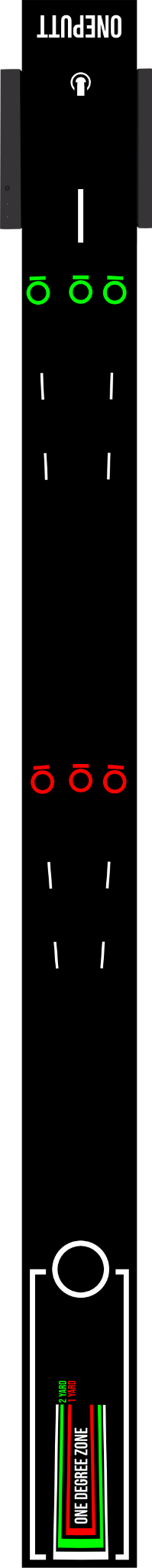

- Mat216×326 mm
- Package340×360×53 mm
ONEPUTT Device Specifications
ONEPUTT Device Specs
Device dimensions, sensor setup, launch-angle detection, and app download information — everything you need to understand ONEPUTT before you buy.
2Ball Speed Sensors
2Ball Straightness Sensors
5Launch Angle Sensors
286×297×42Main body / mm
216×326Mat / mm
950gWeight
General & Sensors
General device information and sensor setup
A quick overview of the device dimensions, package size, weight, and sensor system used to measure your putting data.
Weight
- Weight950 g
Sensors
- Ball Speed2 units
- Ball Straightness2 units
- Launch Angle5 units
Launch Angle
Launch Angle detection range and accuracy
Ball speed is shown in m/s, with mph shown in parentheses.
Min / Max Detection
| Ball Speed | Min / Max Detection (deg) |
|---|---|
| Ball Speed < 3.3 (7.38) | Not measured |
| 3.3 (7.38) < Ball Speed < 4.0 (8.95) | 1.96 / 4.50 |
| 4.0 (8.95) < Ball Speed < 5.0 (11.18) | 1.77 / 4.50 |
| 5.0 (11.18) < Ball Speed < 6.0 (13.42) | 1.66 / 4.50 |
| 6.0 (13.42) < Ball Speed < 7.0 (15.66) | 1.61 / 4.50 |
| 7.0 (15.66) < Ball Speed < 9.0 (20.13) | 1.53 / 4.50 |
Accuracy
| Ball Speed | Accuracy (deg) |
|---|---|
| Ball Speed < 3.3 (7.38) | Not measured |
| 3.3 (7.38) < Ball Speed < 4.0 (8.95) | +/- 1.06 |
| 4.0 (8.95) < Ball Speed < 5.0 (11.18) | +/- 1.05 |
| 5.0 (11.18) < Ball Speed < 6.0 (13.42) | +/- 0.89 |
| 6.0 (13.42) < Ball Speed < 7.0 (15.66) | +/- 0.76 |
| 7.0 (15.66) < Ball Speed < 9.0 (20.13) | +/- 0.68 |
Max Angle Report: 4.50 deg
* If the launch angle is below the detectable range, the app estimates the launch angle in order to calculate ball travel distance.
* If the launch angle is below the detectable range, the app estimates the launch angle in order to calculate ball travel distance.
Get ONEPUTT
Download the app and choose how you want to order
The ONEPUTT app is free to download on the App Store and Google Play, with no monthly subscription fee.
Download the app
Use it with the ONEPUTT device to access Play Mode, Practice Mode, and Training Plan.
Order the device
Order through Shopee, or message us on Facebook Messenger if you would like more information before you decide.
